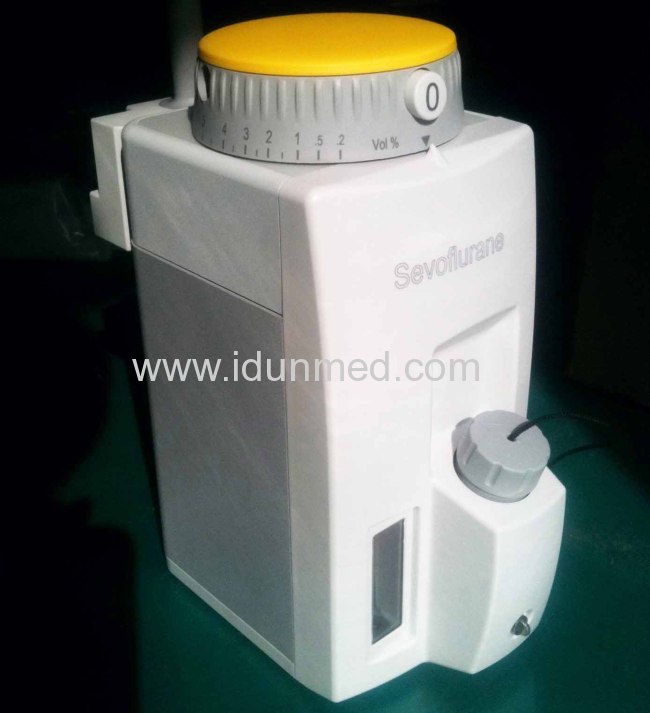

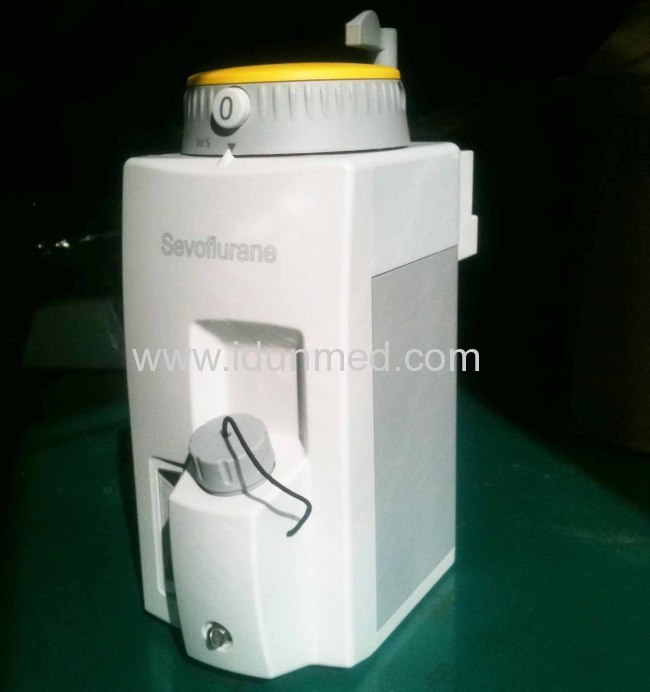

Ibis200 Anesthesia Vaporizer
Anesthesia Vaporizer is Chinese first independent access to the product registration cards, the first throuth the vaporizer of anesthesia clinical trials; Products by German company TUV approved 3rd testing organization Test. Complies with the ISO 8835-4 standard ( domestic equivalent standard YY0635.5-2009), achieved CE certificate issued by the German company TUV.
Vaporizer of a new metal surface treatment technology of anesthesia and optimize the design, selection of a reasonable amount of material and technology.
Vaporizer all were drug - resistant rubber sealing materials, new design funnel shaped dosing port, dual - ring sealing plug, and comprehensively enhance the sealing performance, make parts of the seal dosing easier and reliable. Optimal design of injection molded parts to be the main force, the use of strength and hardness better composites, the lock bar has a longer moment arm, plug has a good sense and durability. Simple and reliable interlocking institutions, making the dial to open more easily, simply concentration of two fingers can be easily adjusted.
Vaporizer optimized design of new gas path, adjust the pressure compensator, coupled with precise temperature compensation system, making the product more superior performance. Can within a wider range of environments and adapt to changes in flow rate, temperature and back pressure, output precise control of concentrations.
Support a variety of substances: Enflurane, Isoflurane, Halothane, Sevoflurane;
Support a variety of interface: Selectatec Compatible, Draeger plug in, Cagemount(ISO23mm tapers);
Support multiple dosing methods of anesthesia: Pour-fil, Easy-fil, Quik-fil (only Sevoflurane)


Specification
Concentration ofanesthetics:
   Halothan:0.2~5%;
   Enflurane:0.2~5%;
   Isoflurane: 0.2~5%;
   Sevoflurane: 0.2~8%.

Flow range:
   0.2L/min ~ 15L/min;
   0.2L/min ~ 10L/min (Concentration is more than 5%).

Dose:
   Evaporation of doing core: 350mL
   Between the minimum and maximum scale is about300mL

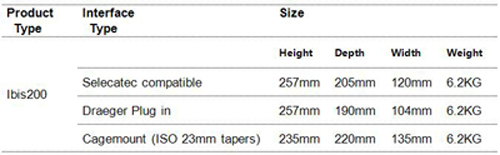

Interface Type:
   Selectatec compatible
   Draeger plug in
   Cagemount ( ISO 23mm tapers )

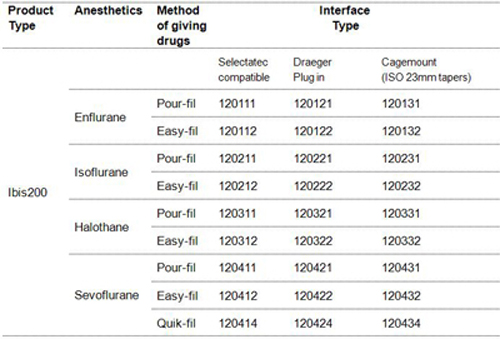

Method of giving drugs:
Pour-fil
Easy-fil
Quick-fil (only Sevoflurane)
